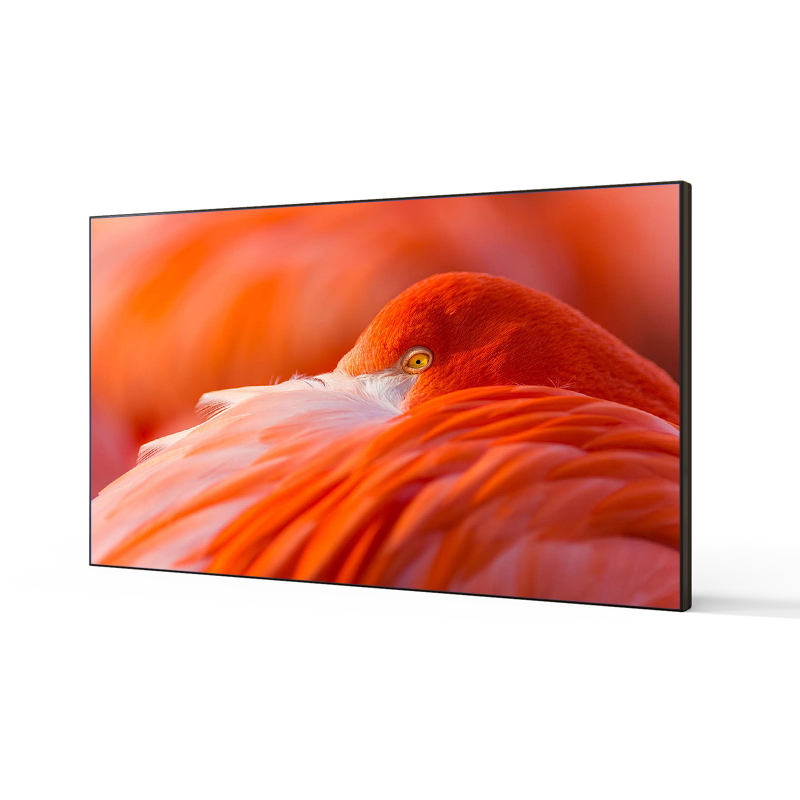

49 inch BOE 3.5mm LCD splicing screen

Product details
Application environment
Installation mode
Requirement submission
Product recommendation

49 inch BOE 3.5mm LCD splicing screen Display parameters

Product model	HBY-PJ490P	Screen size	1073.8mm*604.0mm	Bilateral seam	3.5mm
Brightness	500 cd/m²	Appearance size	1077.6607.8114.7mm	Power waste	220W/h
Contrast ratio	4000:1	Startup response time	6ms	Resolving power	1920*1080
Viewing angle	178°	Weight	28KG	Service life	6W hours


Ultra narrow frame design, perfect visual feast

The 3.5mm splicing narrow frame design makes the display between the screens almost seamless. The width of the left / top border of the splicing display screen is 2.5mm, the width of the right / bottom border is 1.3mm, and the frame spacing is only 3.5mm when splicing multiple screens

LCD splicing unit, multi view angle analysis


Intelligent split screen, single screen, multi screen arbitrary combination

Diversified image mosaic display, the size and position of the display signal window can be set, and the functions such as combination display, stretching and image roaming can be realized easily 3(1).jpg

Application environment

It can be used in various environments

Various installation methods

The installation mode can be adjusted according to the different wall structure and the size of the project area. Engineers all over the country to install, so that you can avoid worries


LCD splicing screen parameter table

LCD screen	Size	49 inches
	Display area	1073.8mm*604.0mm
	Equipment size	1077.6mm607.8mm114.7mm
	Resolving power	1920*1080
	Pixel spacing	1.75mm*1.75mm
	Brightness	500cd/m2
	Contrast ratio	4000:1
	Color	16.7M
	Gamut	0.72
	Viewing angle	178°
	Response time	6ms
	Physical seam	3.5mm
Image	Proportion	16:9
	Wave filter	3D comb filter, digital noise reduction
	Video format	PAL/NTSC
Input port	HDMI	1-way HDMI 1.41920* 1080@60HZ Downward compatibility
	DVI	1-way DVI-I, 1920* 1080@60HZ Downward compatibility
	VGA	1-way VGA (DB-15), 1920* 1080@60HZ Downward compatibility
	AV	2-way AV, 1920* 1080@60HZ Downward compatibility
	USB	1 channel, supporting video, picture and audio playback
	RS232	1-way RS232
Ring out port	AV	2-way AV, 1920* 1080@60HZ Downward compatibility
Ring out port	RS232	2-way RS232
Electrical performance	Input	AC100-240V wide voltage input
	Power waste	220W
	Standby power	0.5W
Environmental Science	Storage temperature	-20~ 65°C
Environmental Science	Working temperature	0~ 50°C
Weight	Net weight	28KG
